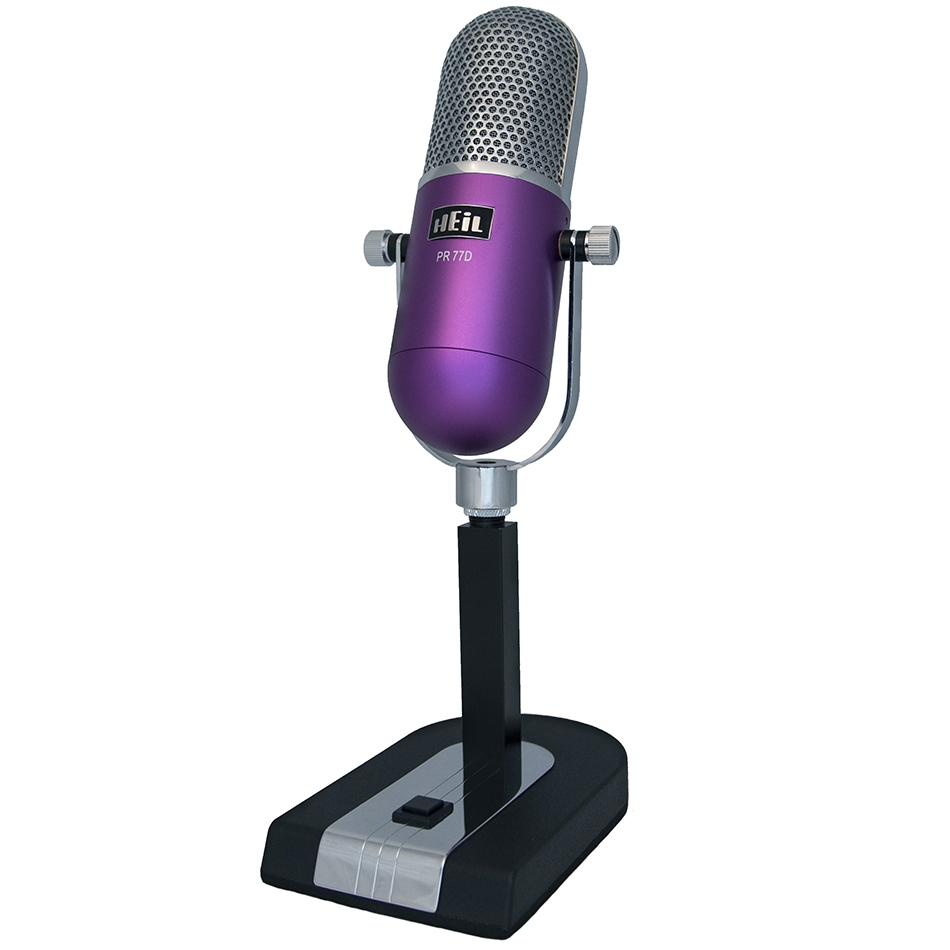

The Heil PR77D is built for anyone who needs a dynamic microphone that handles both spoken word and music without compromise. Whether you’re tracking podcasts, running a home broadcast setup, or capturing vocals in the studio, this mic delivers a flat, wide-range response with strong transient detail and clear articulation — while keeping intermodulation distortion low.
At the core is a large 1-inch, low-mass voice coil paired with a neodymium-iron-boron magnet structure, engineered to drive consistent performance across the frequency range. Heil’s phasing plug design pushes rear rejection past -40 dB at 180 degrees off-axis, so unwanted room noise and bleed from behind the mic stay well controlled. Up front, the cardioid pattern stays forgiving — you can shift position slightly while speaking or singing without hearing the tone change.
What sets the PR77D apart is its two-position switch. Flip to Voice mode for a low-end roll-off starting at 120 Hz (-6 dB/octave), which tightens up speech and cuts proximity rumble. Switch to Music mode to open the full 60 Hz–16 kHz range for a fuller, more natural capture of instruments or singing.
This is a boom- or base-mounted mic by design, fitted with a standard 5/8″-27 stand thread for straightforward setup on your existing hardware.
Key specs:
- Dynamic cardioid capsule
- 3-pin XLR output
- Frequency response: 60 Hz–16 kHz (Music), 120 Hz–16 kHz (Voice, filter engaged)
- 600 ohms balanced impedance
- Max SPL: 148 dB
- Output level: -53.9 dB @ 1 kHz
- Rear rejection @ 180°: -40 dB
- Weight: 24.5 oz
