Description

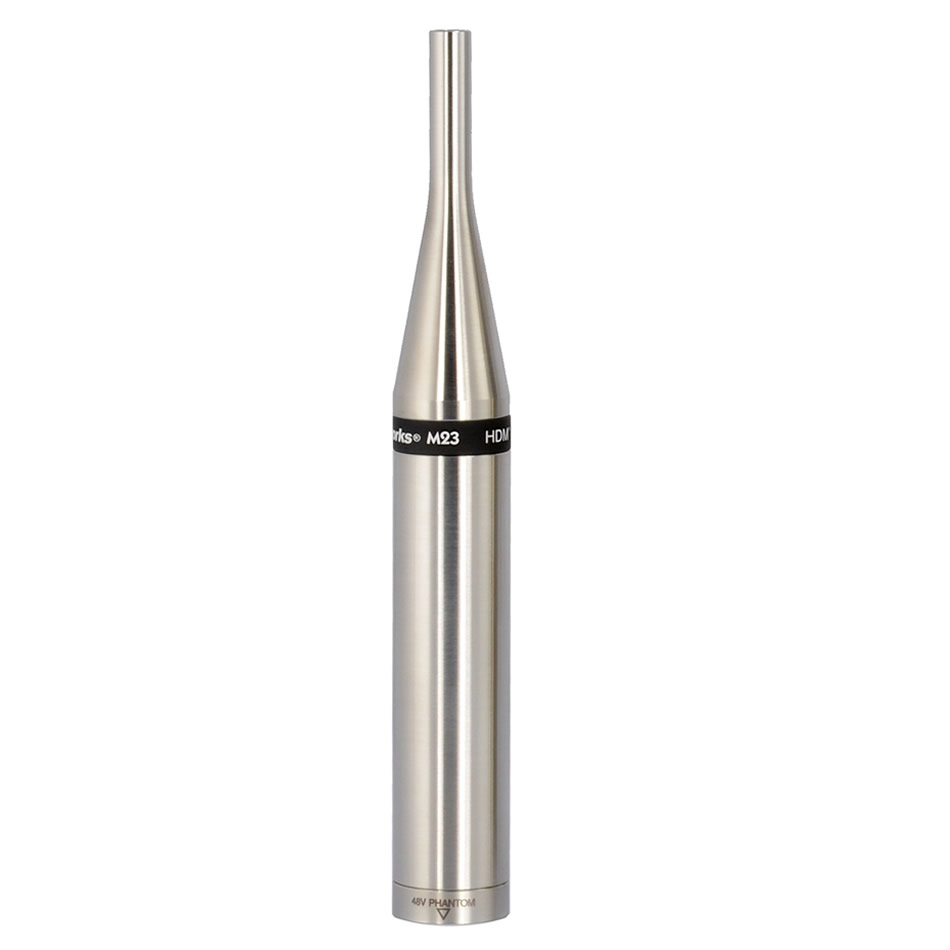

The Earthworks M23 gives you a dependable reference mic for real-world acoustic work — checking room response, tuning a live sound rig, or diagnosing problems in a mix space — without demanding a lab-grade budget. It’s part of Earthworks’ M Series, built around time-domain accuracy and a frequency response that stays consistent whether the room is warm, cold, or somewhere in between.
- Flat frequency response from 9Hz to 23kHz (±1/-3dB)
- Omnidirectional polar pattern with clean, fast impulse behavior and virtually no handling noise
- An upgraded successor to the SMAARTMIC formerly sold by EAW
- Works seamlessly with SMAART, MLSSA, Spectrafoo, TEF, RTA, and measurement platforms from dbx, DEQX, and others
- Meets or exceeds ANSI Type 1 and applicable IEC 61094 standards
- Sensitivity: 30mV/Pa (-30.5dBV/Pa); handles up to 142dB SPL before clipping
- Self-noise: 22dB SPL equivalent (A-weighted)
- XLR output (pin 2+), 100Ω balanced output impedance, 600Ω minimum load
- Runs on standard 48V phantom power at 10mA
- Operating range -10°C to +40°C, storage -20°C to +50°C
- Measures 165mm x 22mm and weighs just 160g (.35 lb)
Every M23 ships with its own individual calibration chart documenting open-circuit sensitivity and frequency response, and an electronic calibration file is also available. Earthworks recommends re-calibration every five years to keep readings trustworthy over the long haul. If you need a measurement mic that’s accurate, stable, and easy to integrate into your existing analysis software, the M23 is a solid, no-drama choice.
