Description

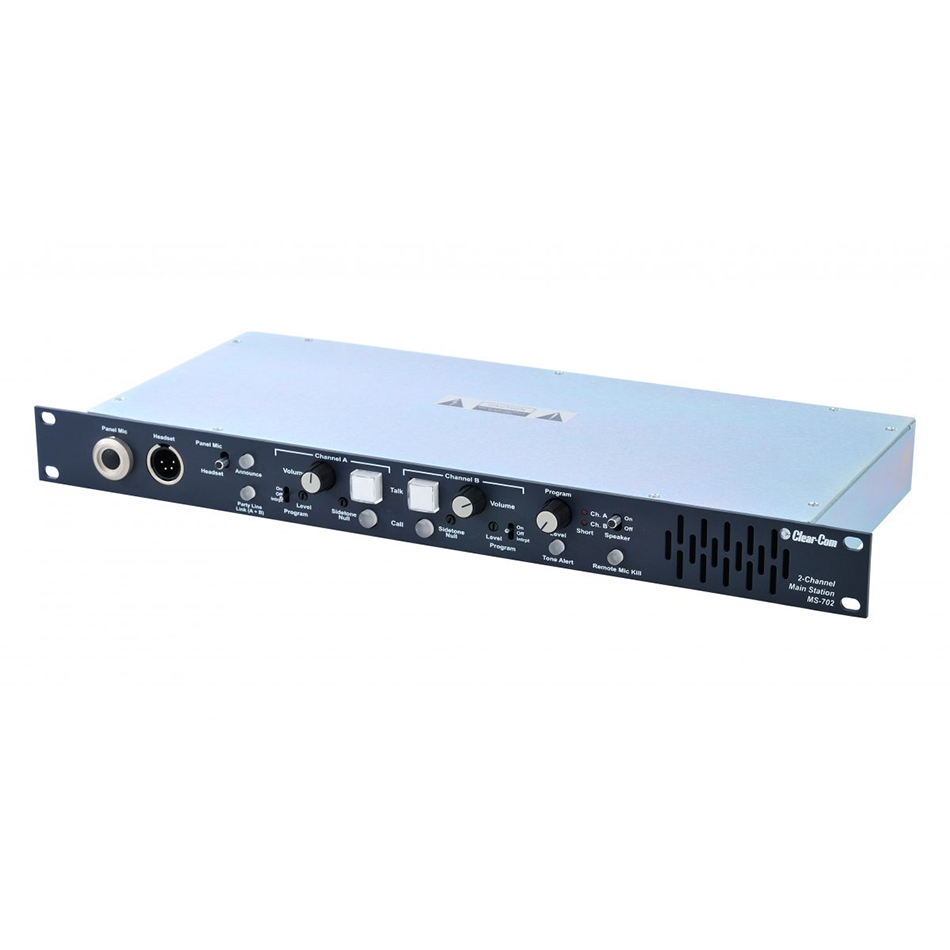

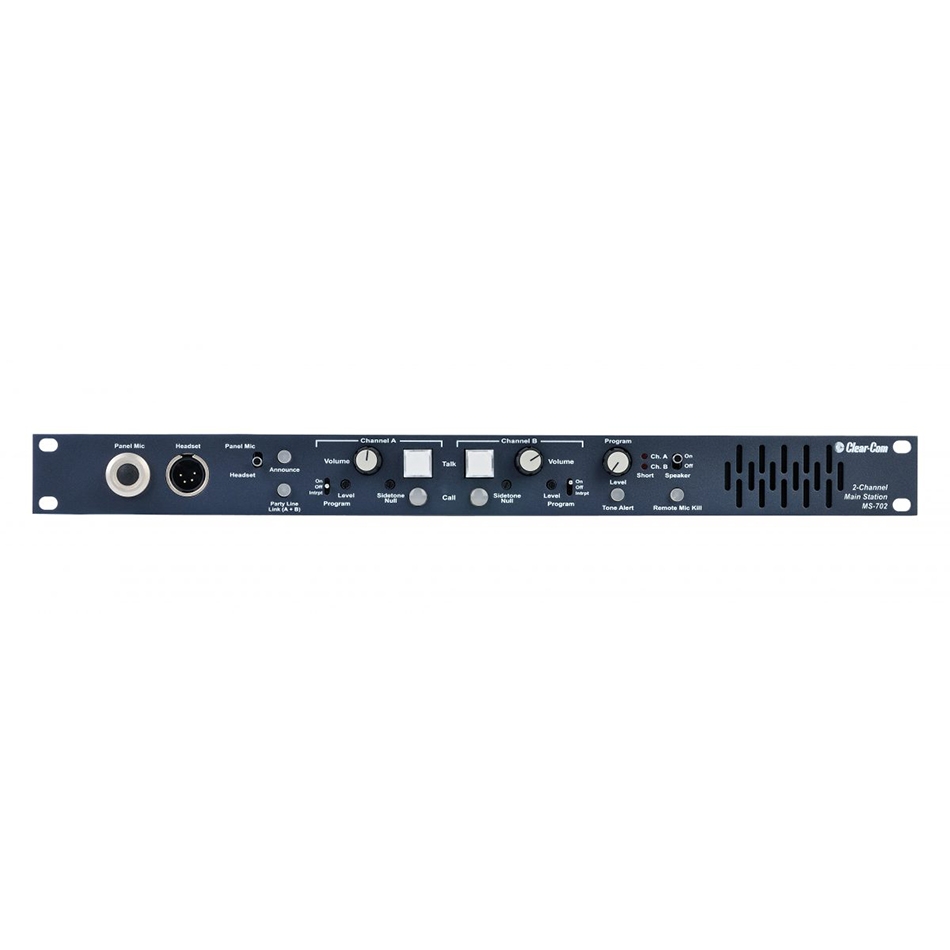

The Clear-Com MS702 puts two full partyline channels into a single rack space, making it a practical hub for productions that need reliable crew and cast communication without a sprawling intercom rack. Each channel runs independently with its own volume control, so an operator can manage a stage channel and a production channel side by side, cross-monitor with the Channel A & B Link switch, or split duties across two separate teams.
- 2-channel, 1RU main station with an integrated speaker for hands-free monitoring
- Handles up to 55 beltpacks or 10 speaker stations spread across the two channels
- Automatic short-circuit protection with LED status indicators and fast reset
- Visual and audible call signaling so incoming calls aren’t missed in a busy control room
- Program feed routed to both channels, with selectable Program Interrupt
- Remote Mic Kill and Stage Announce with relay for show-critical cueing
- Universal voltage power supply for use across different regions and venues

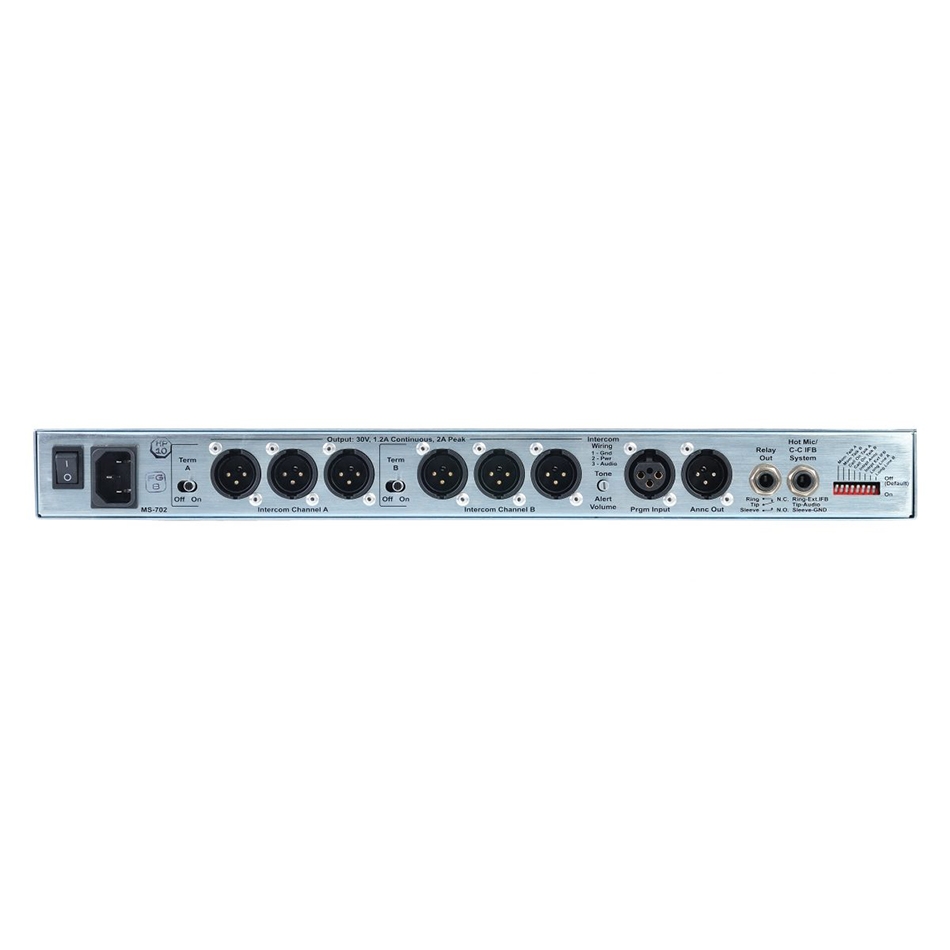

Under the hood, the MS702 is built to broadcast-grade audio tolerances: mic inputs accept both electret panel mics and dynamic headset mics with limiter protection against overload, program input handles levels up to 20 dBu before clipping, and the balanced Stage Announce output is ready to feed a paging or announce system. The universal power supply accepts 100-240 VAC and delivers 1.2A continuous per channel, with sub-second recovery from short circuits.
Housed in a compact 1.75 x 19 x 6.5 in chassis weighing 6.1 lbs, it drops straight into an existing rack alongside beltpacks and speaker stations already on your intercom network.
