Description

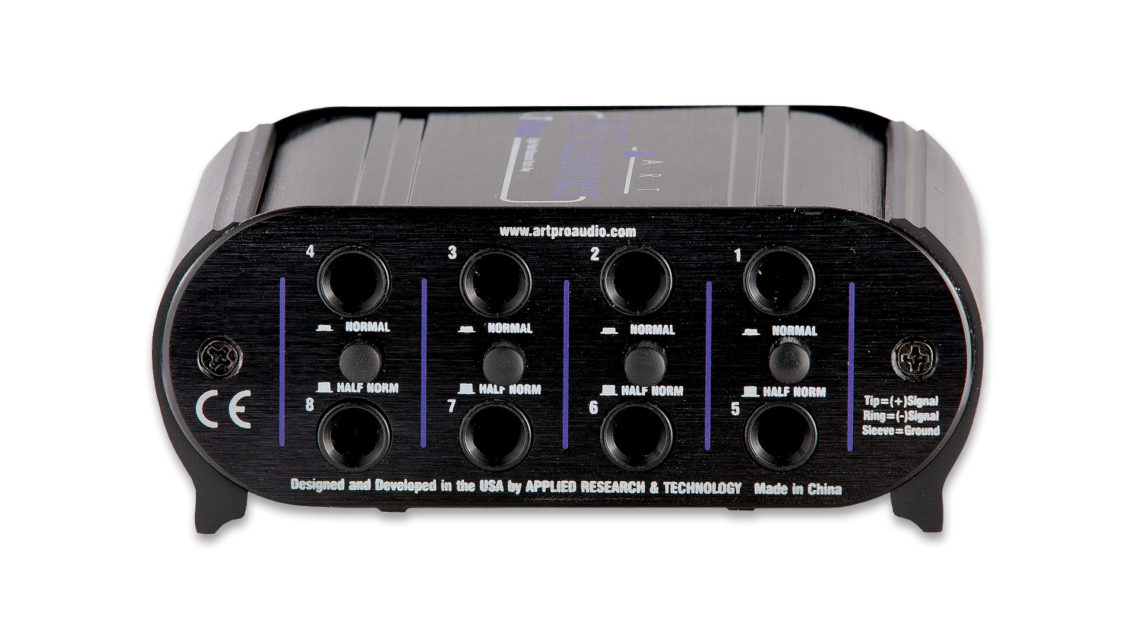

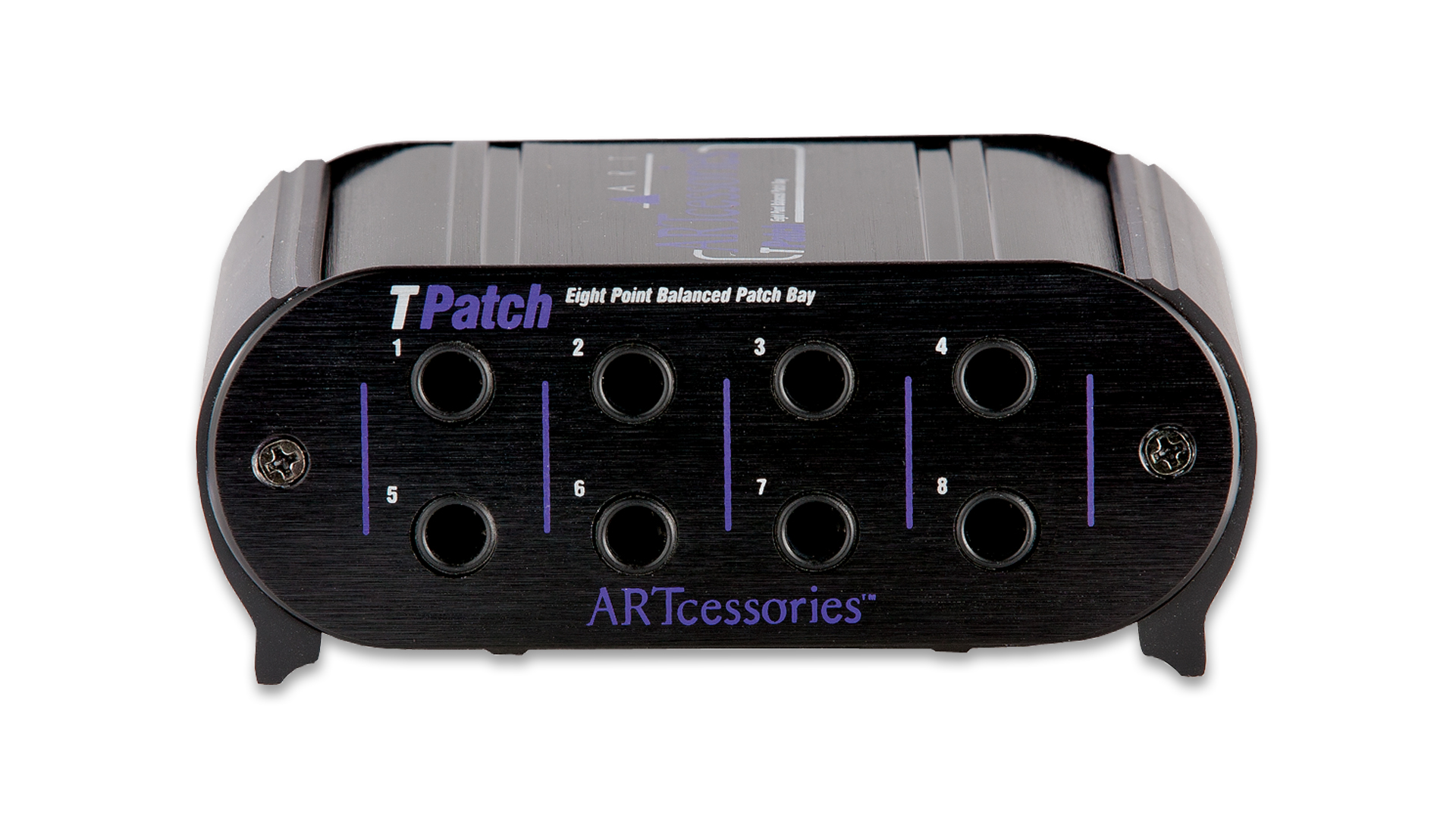

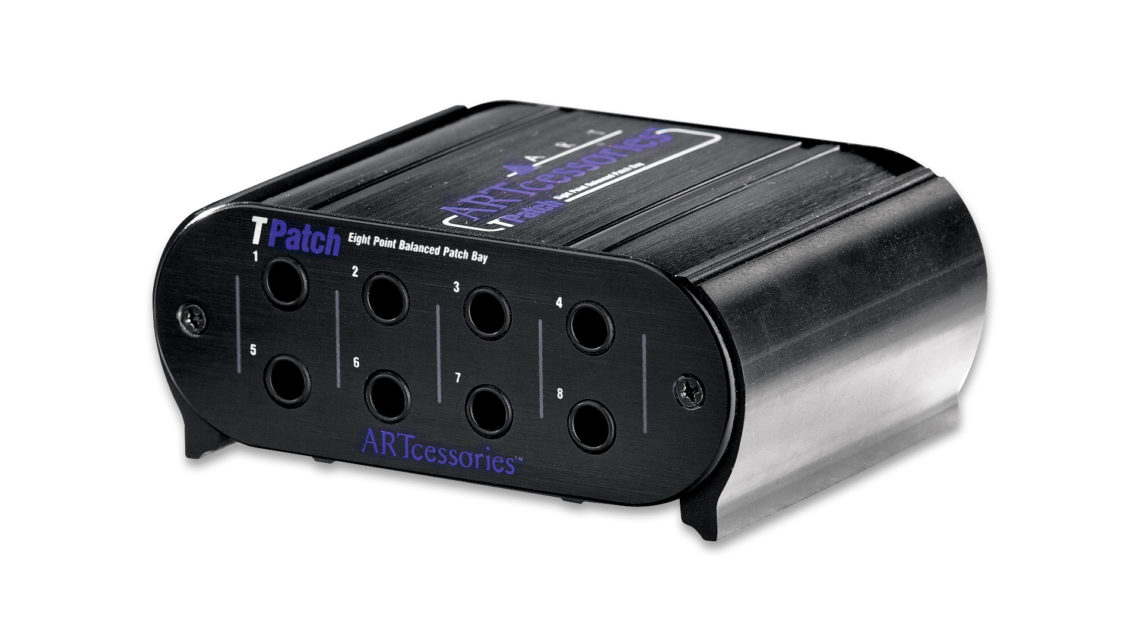

Small studios still need clean signal routing, and the ARTcessories TPatch delivers it without eating up rack space. This 8-point balanced patchbay sits right on your desktop, giving you a central hub for 1/4-inch TRS connections instead of a tangle of cables running to the back of your rack units.
Each of the four channels links an input/output pair, and every pair can be switched between normal and half-normal modes depending on how you need signal to flow through your chain. The passive, all-aluminum black-anodized case means there’s no power supply to fail and nothing active to degrade your signal — just a durable, no-nonsense box built to sit on a desk for years.
- Eight points of balanced direct signal connections
- Four channels of linked input/output pairs
- Switchable half-normal and normal modes with through-type connections
- 1/4-inch TRS phone jack connectors throughout
- Rugged extruded aluminum case for desktop or shelf use
With CMRR greater than -90dB and isolation better than -80dB (both typical), the TPatch keeps crosstalk and noise out of your patching while staying compact: just 1.85″ H x 4.6″ W x 3.9″ D and 0.84 lbs. It’s a practical way to add flexible routing to a home studio, project room, or any setup where a full-size patchbay would be overkill.
